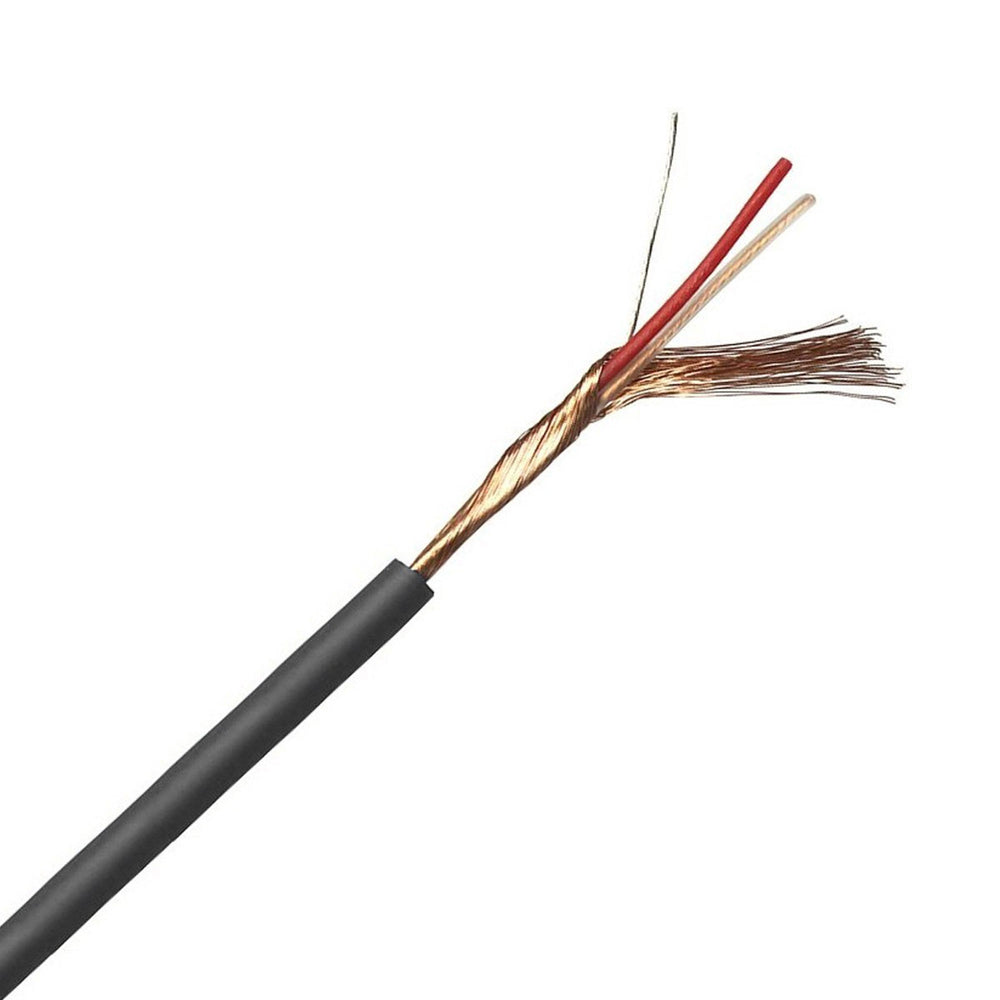

Mogami W3080 110 Ohm AES/EBU Digital Audio Cable – Bulk Cable, Per Foot

Specifications:

• Part No.: W3080
• No. of Conductor: 2
• Conductor:
  Details: 7/0.18A (7 x #33AWG)
  Size: 0.178mm² (#25AWG)
• Insulation:
  Ov. Dia. (mm): 1.36⌀ (0.054″)
  Material: XLPE
  Colors: Red/Clear
• Drain Wire:
  Details: 7/0.18A (7 x #33AWG)
  Size: 0.178mm² (#25AWG)
• Served Shield: Approx. 60/0.12A (Approx. 60/#37AWG)
• Ov. Jacket:
  Ov. Dia. (mm): 5.0±0.3⌀ (0.197± 0.0118″⌀)
  Material: Flexible PVC
  Color: Black / Blue
• Roll Sizes: 50m (164 Ft) / 100m (328Ft) / 200m (656Ft)
• Weight: 3.3kg/100m Roll

• ELECTRICAL & MECHANICAL CHARACTERISTICS
• Part No.: W3080
• DC Resistance at 20°C:
  Inner Cond.: 0.11Ω/m(0.034Ω/Ft)
  Shield Cond.: 0.028Ω/m(0.0085Ω/Ft)
• Capacitance at 1kHz, 20°C (effective capacitance value between inner twin): 46pF/m (14pF/Ft)
• Inductance: 1.0μH/m (0.31μH/Ft)
• Characteristic Imperdance: 110Ω±5%
• Attenuation (6MHz): 0.069dB/m (0.021db/Ft)
• Phase Constant (6MHz): 0.20rad/m
• Electrostatic Noise*: 50mV Max.
• Electromagnetic Noise at 10kHz*: 2.0mV Max.
• Microphonics**: 40mV Max.
• Voltage Breakdown: Must withstand at DC 500V/15sec, 20°C
• Insulation Resistance: 10000 MΩ x m Min. at DC 250V, 20°C
• Flex Life*: 10,000 cycles
• Tensile Strength: 343N
• Emigration: Non-Emigrant to ABS resin
• Applicable Temperature: -20°C to +60°C(-4°F to +140°F)
• Standard:
  AES3-100X (ANSI S. 4. 40-199-X)
  EBU Rech, 3250-E
  CEI / IEC 958 / CCIR Rec. 647
